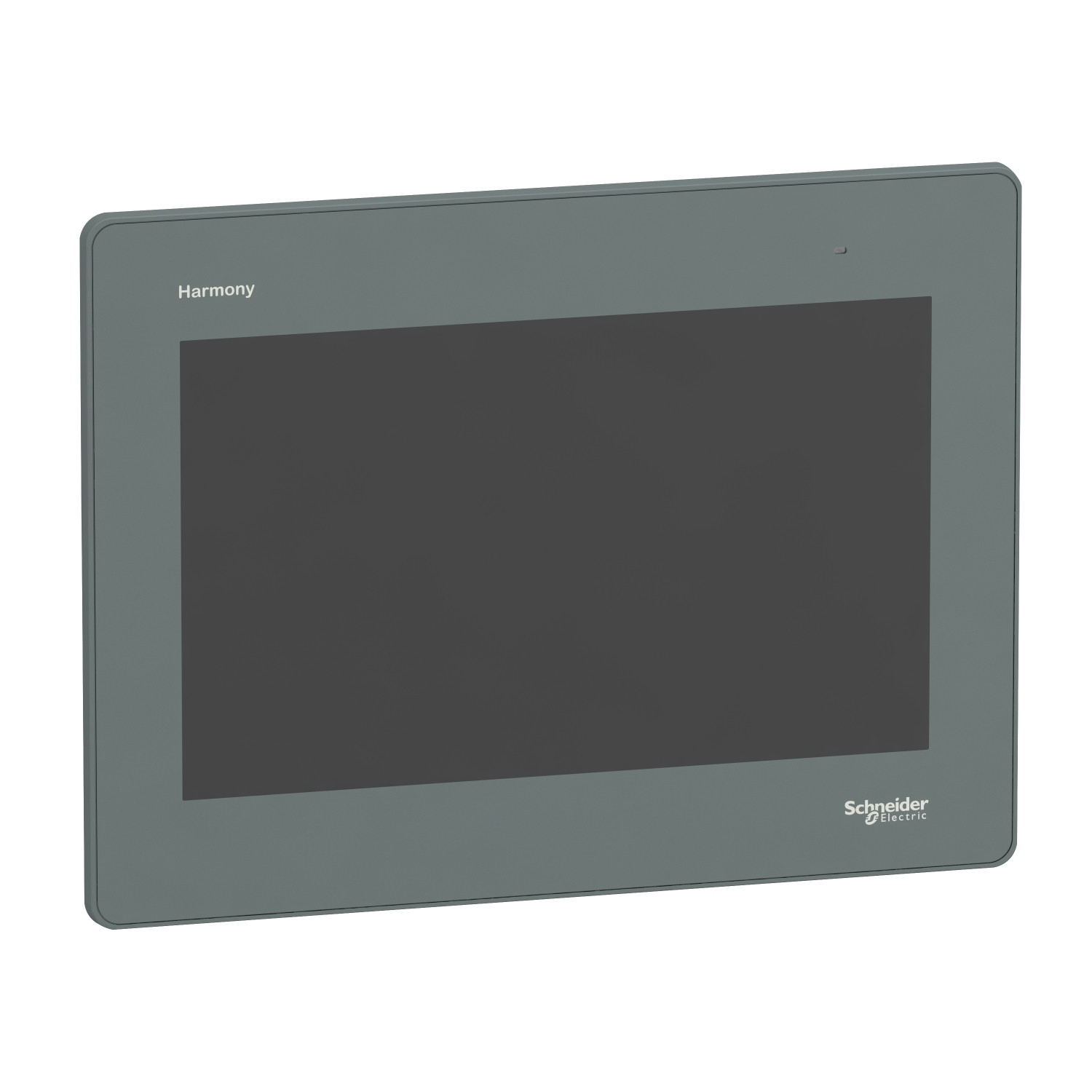

Schneider HMIGXU5512 | 10.1 inch widescreen, Universal model, 2serial ports,1Ethernet port, embeddedRTC

The Schneider Electric HMIGXU5512 is a 10.1-inch wide screen Universal model HMI from the Harmony GXU series. This model is designed to provide advanced communication, wide display visibility, and reliable performance in demanding industrial automation environments. With dual serial ports, Ethernet connectivity, and an embedded real-time clock (RTC), it is a versatile and powerful solution for modern control systems.

Key Features

• Display Size: 10.1-inch wide screen

• Display Type: TFT LCD with LED backlight

• Resolution: 1024 x 600 pixels (WSVGA)

• Touch Panel: 4-wire resistive touchscreen

• Model Type: Universal model

Communication Interfaces

• Serial Ports: 2 configurable ports (RS232/RS485)

• Ethernet Port: 1 port (10/100 Mbps)

• USB Ports:

  • 1 USB Host port

  • 1 USB Device port

• Expansion Option: May support SD card (depending on configuration)

Functional Capabilities

• Embedded Real-Time Clock (RTC): Enables accurate timekeeping, alarms, and data logging

• Programming Software: EcoStruxure™ Operator Terminal Expert

• Protocol Compatibility: Supports communication with Schneider Electric and third-party PLCs

• Interface Functions:

  • Alarm management

  • Real-time data visualization

  • Recipe handling

  • Historical trends

Mechanical & Environmental Specifications

• Mounting: Panel mounting

• Front Panel Protection: IP65 (dust and water resistant when properly mounted)

• Power Supply: 24V DC

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -20°C to +60°C

• Build: Compact, durable for industrial conditions

Applications

• Machine automation systems

• Process control panels

• Packaging and production lines

• HVAC and energy systems

• Water and utility management

Advantages

• Large, high-resolution 10.1” display for easy operation

• Dual serial and Ethernet ports for flexible communication

• Embedded RTC for time-based functions and logging

• Suitable for a wide range of automation scenarios

• Modern design with reliable industrial performance
