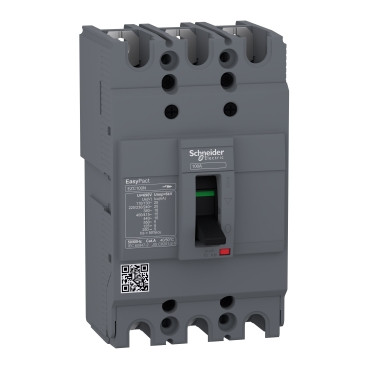

The Schneider EZC100N3020 is a molded case circuit breaker (MCCB) from the EasyPact EZC100N series. Designed for low-voltage electrical systems, this breaker ensures reliable protection against overloads and short circuits with a thermal-magnetic (TMD) trip unit. It is rated for 20 A and features a 3-pole direct connection (3D).

 Technical Specifications

• Model: EZC100N3020

• Series: EasyPact EZC100N

• Rated Current (In): 20 A

• Poles: 3 (Three-phase protection)

• Trip Unit Type: TMD (Thermal Magnetic, fixed settings)

• Rated Operational Voltage (Ue): Up to 415 V AC

• Rated Insulation Voltage (Ui): 690 V AC

• Ultimate Breaking Capacity (Icu):

  • Up to 25 kA at 415 V AC

• Connection Type: 3D (Direct connection)

• Utilization Category: A

• Compliance Standards: IEC 60947-2

• Mounting: Fixed mount in panels

 Key Features

• Integrated TMD Protection

  • Handles both long-time overloads and instantaneous short circuits

• Compact, Space-saving Design

  • Fits easily in modern distribution panels

• Reliable and Durable

  • Built for demanding environments and long service life

• Tool-less Installation Option

  • Quick terminal access for efficient setup

 Typical Applications

• Power distribution panels

• HVAC equipment

• Light industrial circuits

• Commercial electrical boards

• Sub-panels and machine control

The EZC100N3020 offers solid protection, high breaking capacity, and ease of installation, making it a smart choice for dependable circuit management in a wide range of low-voltage applications.
