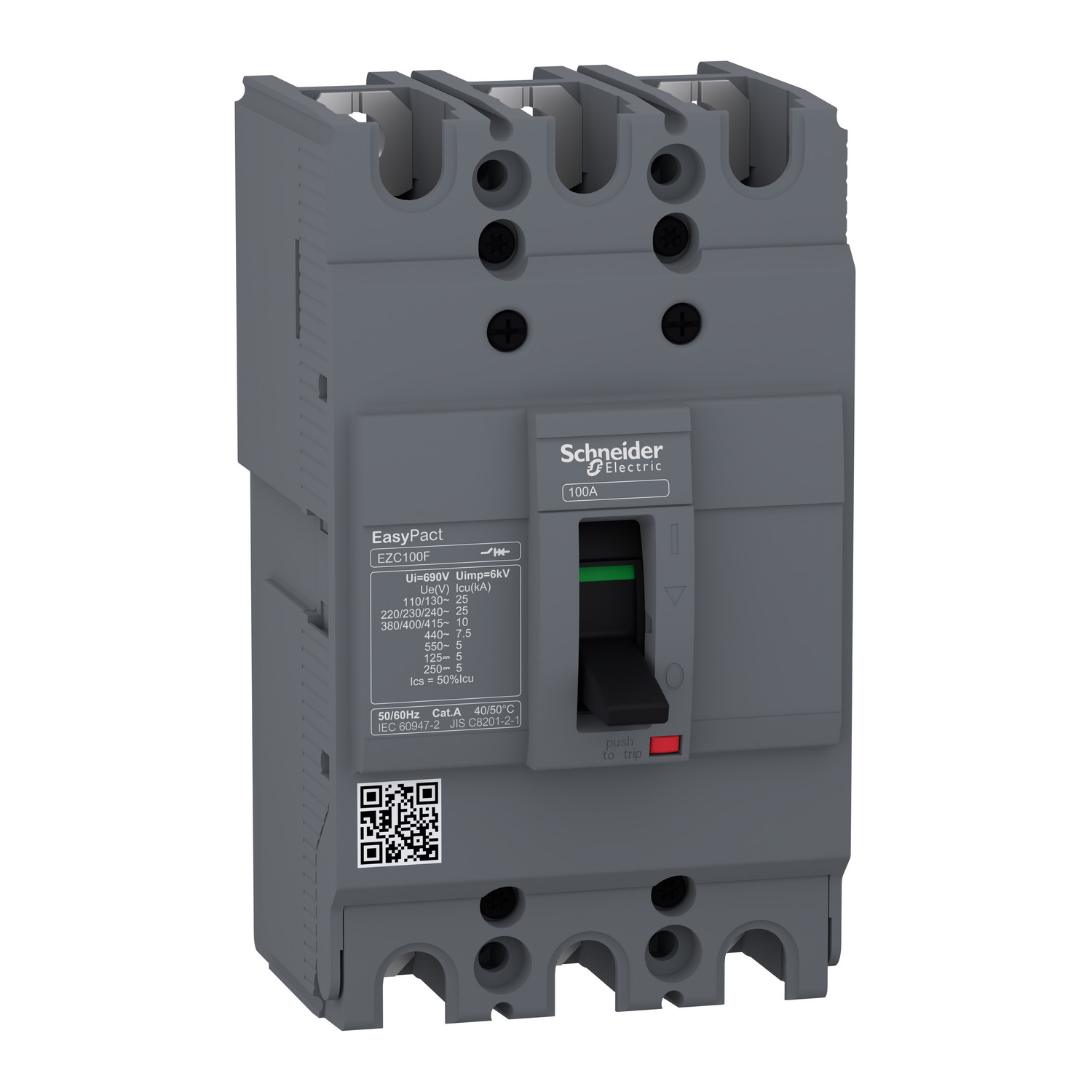

Schneider EZC100F3015 | circuit breaker Easypact EZC100F – TMD – 15 A – 3 poles 3d

Schneider EZC100F3015 | EasyPact EZC Molded Case Circuit Breaker

The Schneider EZC100F3015 is a molded case circuit breaker (MCCB) from the EasyPact EZC100F series, designed to provide protection against overloads and short circuits in low voltage electrical systems.

 Key Specifications

• Product Series: EasyPact EZC100F

• Part Number: EZC100F3015

• Rated Current (In): 15 A

• Frame Size: 100 A

• Rated Operational Voltage (Ue): Up to 415 V AC

• Breaking Capacity: Typically 25 kA at 415 V AC (check exact model variant for confirmation)

• Number of Poles: 3P (Three-phase application)

• Trip Unit Type: Fixed thermal-magnetic trip

• Mounting: Fixed, suitable for panel mounting

• Standards: Complies with IEC 60947-2

 Features & Benefits

• Protection Functions:

  • Thermal protection against overloads

  • Magnetic protection against short circuits

• Compact Size: Optimized dimensions for space-saving in switchboards

• Durable Design: Built to handle demanding industrial and commercial environments

• Safety: Designed to provide high performance and reliable circuit protection

• Versatile Applications: Suitable for use in distribution panels, motor protection, and general electrical protection

 Typical Applications

• Industrial power distribution

• Commercial building electrical panels

• Motor circuit protection

• Backup and branch circuit protection

• General-purpose electrical systems
