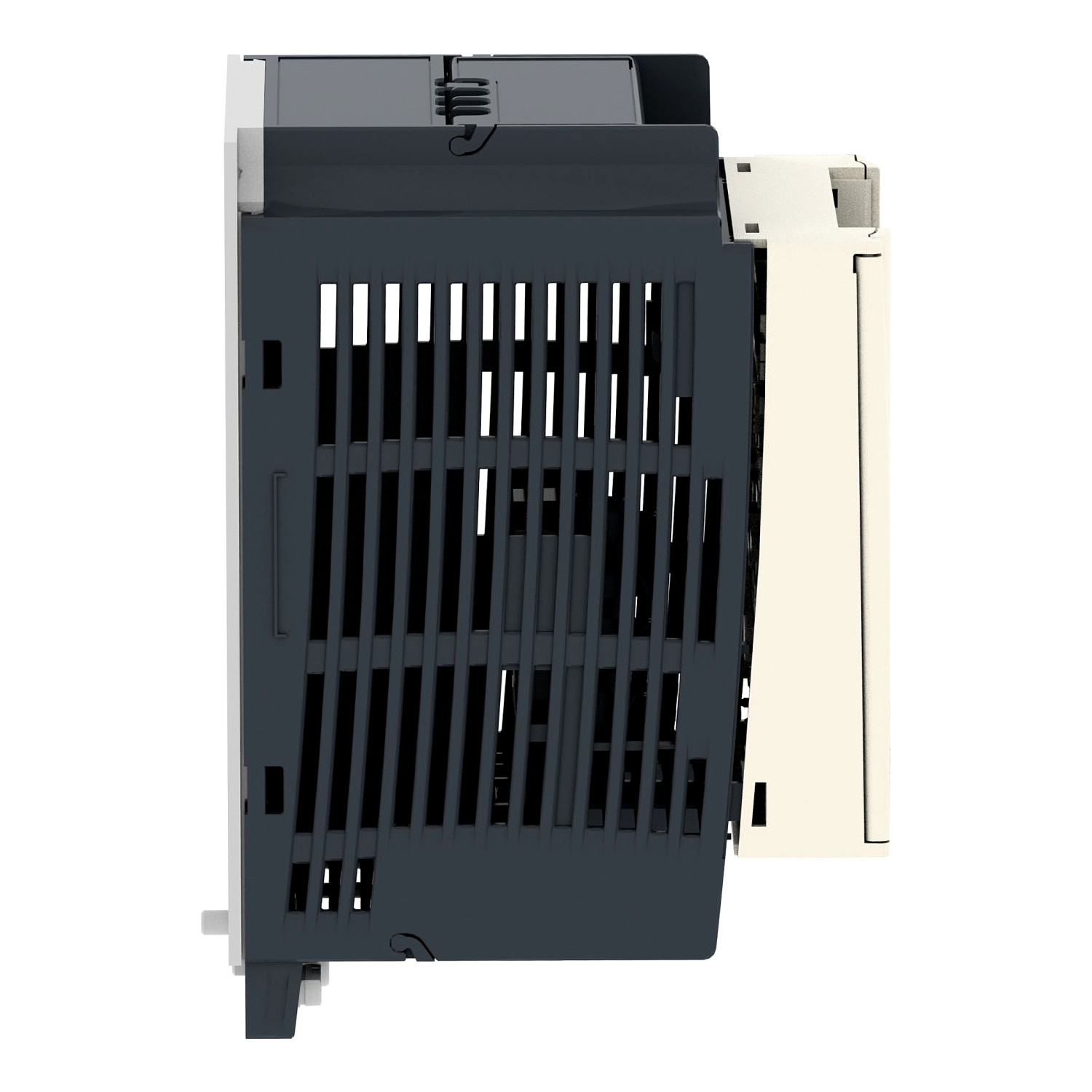

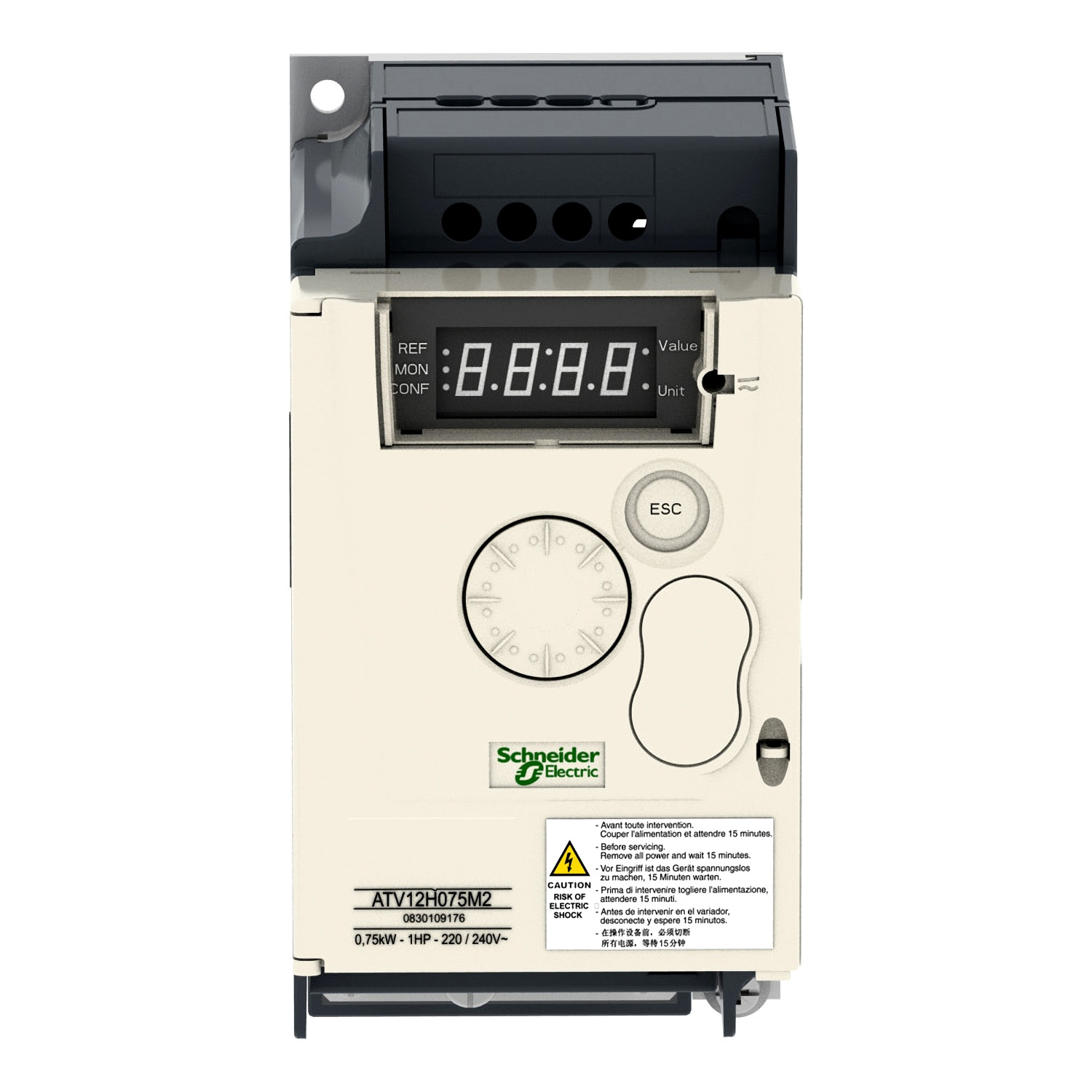

Schneider ATV12H075M2 Altivar ATV12 Variable Speed Drive

TheSchneider ATV12H075M2 is part of the Altivar ATV12 series, offering variable speed control for a range of applications. This model is designed for driving electric motors in industrial and commercial environments, providing precise control over speed and torque while improving energy efficiency.

 Key Features

• Product Type: Variable Speed Drive

• Part Number: ATV12H075M2

• Power Rating: 0.75 kW (1 hp)

• Input Voltage: 200–240V AC, Single-phase

• Motor Compatibility: Suitable for small to medium motors

• Cooling: Equipped with a heat sink for efficient heat dissipation

• Control Mode: Speed control for continuous and precise operation

• Dimensions: Compact design for easy integration in control panels

 Technical Specifications

• Power Rating: 0.75 kW (1 hp)

• Voltage: 200V to 240V AC, Single-phase input

• Current Rating: Suitable for 1-phase motor applications

• Frequency: 50/60 Hz

• Cooling Method: Integrated heat sink for passive cooling

• Operating Temperature: Typically operates within a range of -10°C to +50°C

• Enclosure Rating: Designed for indoor use with IP20 (limited protection against solid objects)

• Control Options: Can be controlled via digital inputs, allowing for integration into automation systems

• Mounting: Designed for panel or wall mounting

• Communication: Supports Modbus RTU for easy communication with other devices

 Advantages

• Precise Speed Control: Ensures smooth and energy-efficient motor control

• Efficient Cooling: Built-in heat sink for effective temperature management

• Energy Savings: Reduces energy consumption by adjusting motor speed according to load requirements

• Compact and Easy to Install: Small form factor makes it ideal for tight spaces in control panels

• Cost-Effective Solution: Ideal for small machines and applications with simple motor control needs

• Global Compatibility: Designed to operate in a range of voltages for different regions

 Typical Applications

• Small pumps and fans

• Conveying systems

• HVAC systems

• Compressors

• Conveyor belts

• Small machinery requiring variable speed control

• Applications in both industrial and commercial environments
