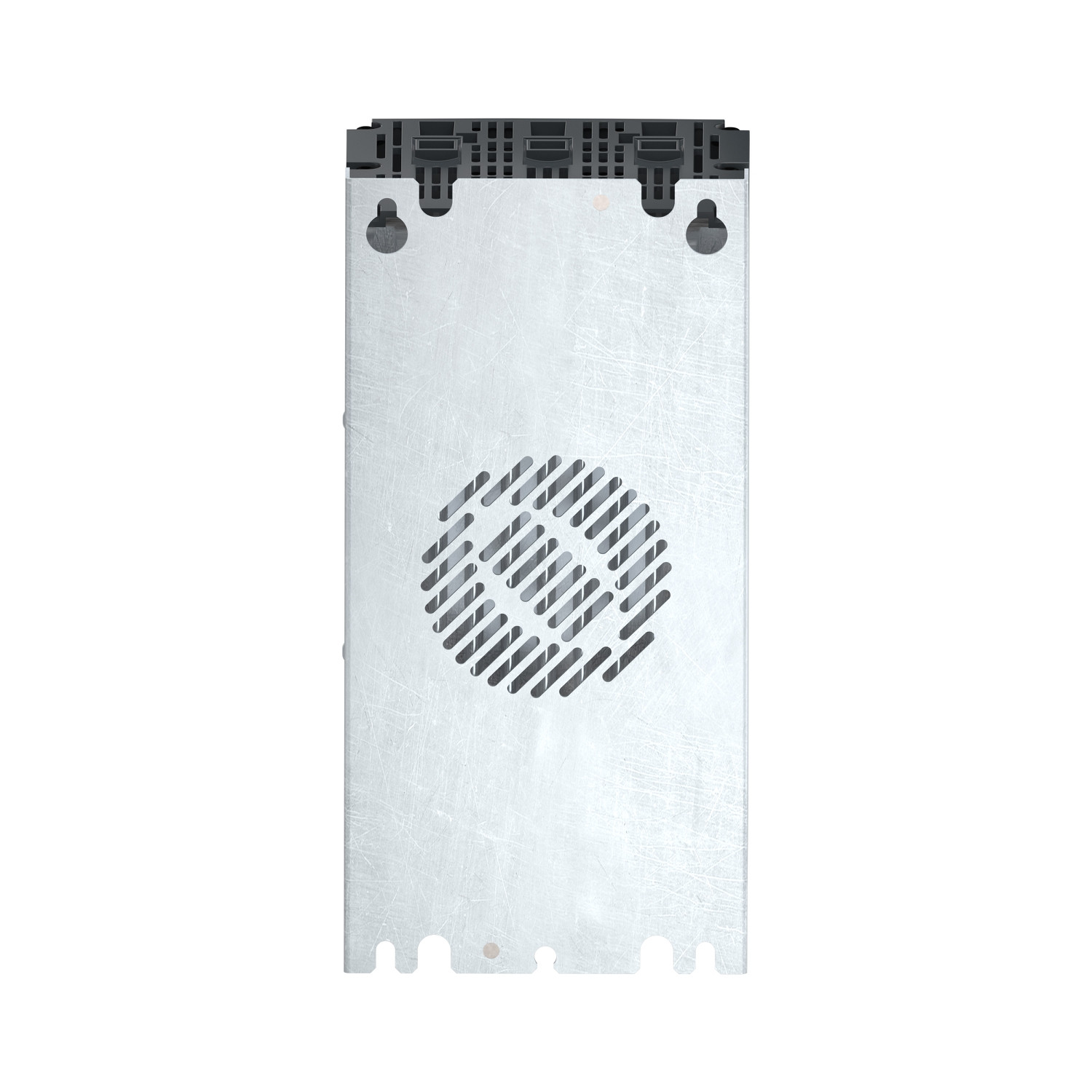

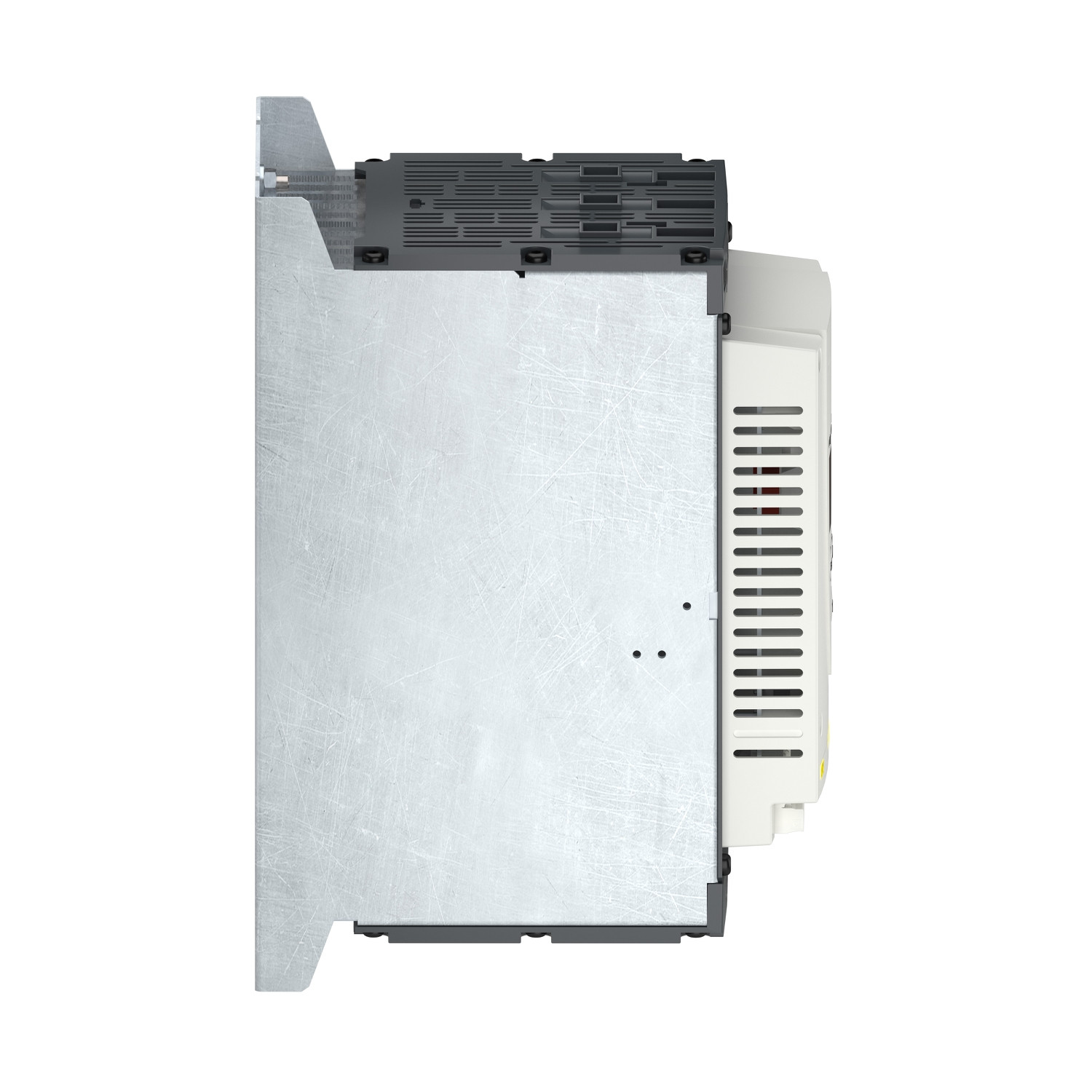

Schneider ATS22D75Q| Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 18.5 to 37kW

Schneider ATS22D75Q | Soft Starter Overview

The Schneider ATS22D75Q is a soft starter from the Altistart 22 series, designed to provide smooth and controlled startup for asynchronous motors. It helps reduce mechanical and electrical stress, ensuring longer motor life and improved efficiency.

1. General Specifications

• Product Name: Schneider ATS22D75Q

• Series: Altistart 22

• Function: Soft Starter for Asynchronous Motors

• Power Rating: 18.5 to 37kW

• Operating Voltage: 230V to 440V AC

• Control Supply Voltage: 230V AC

• Application: Industrial motor control for pumps, conveyors, fans, and compressors

2. Key Features & Benefits

• Smooth Motor Start & Stop – Reduces mechanical shocks and electrical surges.

• Wide Power Range – Supports motors from 18.5kW to 37kW for various applications.

• Advanced Motor Protection – Includes overload, overtemperature, and short-circuit protection.

• Energy Efficiency – Minimizes power consumption during startup.

• User-Friendly Interface – Digital display with programmable settings.

• Compact & Space-Saving Design – Suitable for industrial control panels.

3. Applications

• Pumps & Compressors – Prevents hydraulic surges and extends motor lifespan.

• HVAC Systems & Fans – Ensures stable operation without electrical spikes.

• Conveyors & Material Handling – Provides smooth acceleration and prevents jerky movements.

• Industrial Machines & Crushers – Supports high-load operations.

• Water Treatment Plants – Controls water pumps efficiently.

4. Protection & Safety Features

• Overload Protection – Prevents excessive current draw.

• Short Circuit Protection – Enhances safety and prevents damage.

• Overtemperature Protection – Maintains safe operating conditions.

• Phase Loss & Imbalance Detection – Ensures reliable motor operation.

• Built-in Bypass Contactors – Improves efficiency and reduces power dissipation.

5. Installation & Maintenance

• Simple Installation & Wiring – Designed for quick integration.

• Real-Time Monitoring & Diagnostics – Enables fault detection.

• Durable & Robust Design – Suitable for industrial environments.
